What Is a Mobile RFID Reader?
A mobile RFID reader, also called a handheld RFID reader or portable RFID scanner, is a battery-powered device that emits radio frequency energy to communicate with and read RFID tags. In practice, the operator carries or holds the reader while moving through a space, pointing it at or near tagged assets to capture tag data, timestamp each read, and transmit the results to an asset management system.
Mobile readers are the standard tool for periodic physical asset audits, wall-to-wall verification exercises, and any scenario where assets are spread across a large area that a fixed reader cannot cover. They can read multiple tags simultaneously in their radio field a significant advantage over barcode scanners, which require direct line-of-sight contact with each individual label.
TL;DR
A mobile RFID reader is a portable, handheld device that reads RFID tags on assets by scanning within close range. Unlike fixed readers, which operate continuously at a defined point, mobile readers are carried by staff during physical audits, verification exercises, or spot checks. As a result, they enable fast and accurate asset identification across large areas without requiring line-of-sight contact with each tag.
Types of Mobile RFID Readers
Type | Form Factor | Best For |
| Dedicated handheld RFID reader | Purpose-built device with display and scanner | High-volume audits, warehouses, industrial environments |
| RFID-enabled mobile computer | Rugged smartphone or tablet with embedded RFID | Combined barcode + RFID scanning; field operations |
| RFID sled/attachment | RFID module that attaches to a standard smartphone | Lower-cost deployment; lighter audit workloads |
| RFID-enabled smartphone app | Software + Bluetooth or NFC reader peripheral | HF RFID, NFC tags; proximity-range reading only |
Mobile RFID Reader vs. Fixed RFID Reader vs. Barcode Scanner
Factor | Mobile RFID Reader | Fixed RFID Reader | Barcode Scanner |
| Operation | Carried by staff during audits | Permanently installed; reads automatically | Carried by staff; requires direct line-of-sight |
| Read range | 1–10 metres (UHF); centimetres (HF/NFC) | Fixed zone portal or ceiling coverage | 0.1–1 metre typically; line-of-sight required |
| Bulk reading | Yes multiple tags in one sweep | Yes continuous and automated | No one label at a time |
| Human involvement | Required operator moves through space | None after installation | Required must align with each label |
| Cost | Medium device cost plus operator time | Higher upfront; low ongoing | Low devices are inexpensive |
| Best for | Periodic audits, large-area verification | Chokepoints, automated movement tracking | Periodic audits, low-volume asset checks |

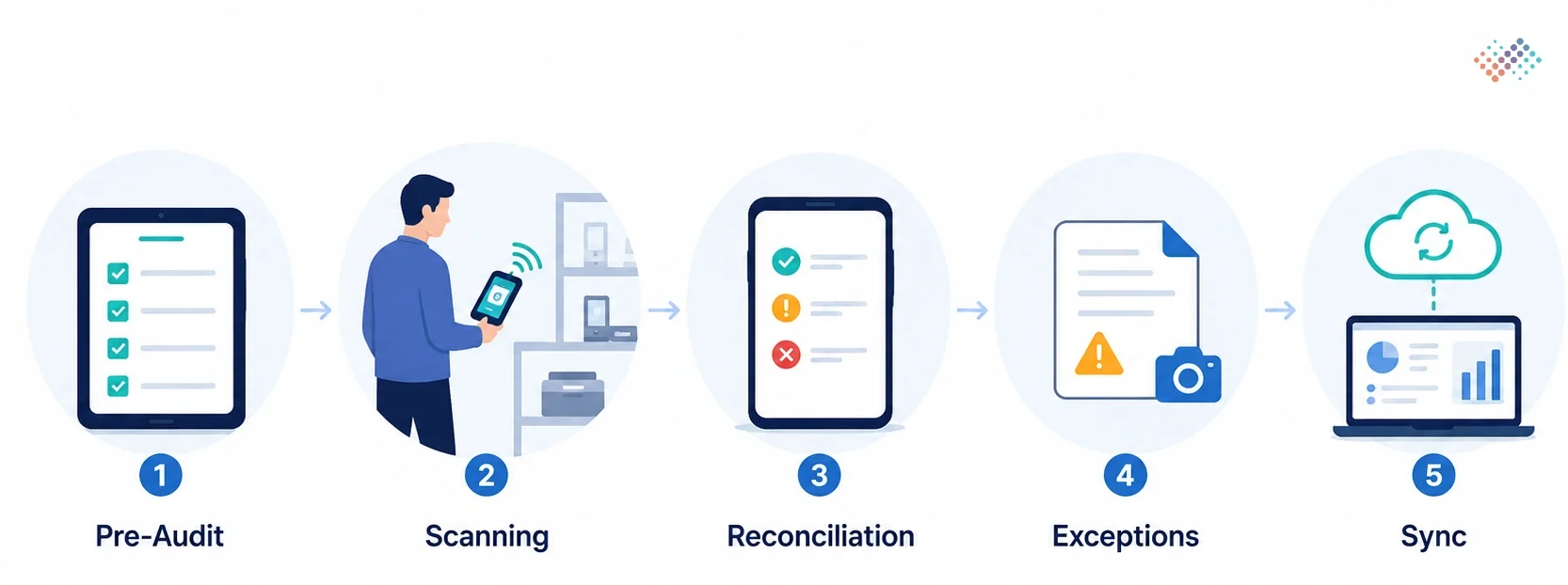

How Operators Use Mobile RFID Readers for Asset Audit
- Prepare the Pre-Audit: The asset management system generates an audit list for the target location or asset category. The operator then loads this list onto the mobile reader or its connected application.
- Scan On-Site: The operator walks through the space and sweeps the mobile reader across the area. The reader captures all RFID tags within range and matches them against the expected list in real time.
- Reconcile Instantly: The system instantly confirms assets that match the register. It immediately flags missing assets (those in the register but not scanned) and unregistered assets (those scanned but not in the register).
- Record Exceptions: The operator adds a note or takes a photograph for any unresolved items. The system then flags these exceptions for further investigation.
- Sync the Data: The operator uploads the scan results to the asset management system via Wi-Fi, cellular, or a docked sync. This action instantly updates asset statuses, confirms locations, and logs verification timestamps.
Key Selection Criteria for Mobile RFID Readers
- Frequency: UHF readers (860–960 MHz) offer the longest range (1–10 metres) and bulk reading capability; HF or NFC readers suit short-range, precision applications.
- Read range: Match the reader’s range to the density of the environment. Tight spaces with high-density tagging need controlled range to avoid reading tags in adjacent zones.
- Ruggedness: Industrial, warehouse, or outdoor environments require IP-rated devices that can withstand drops, dust, and moisture.
- Battery life: Audit-grade mobile readers should sustain a full shift (8+ hours) on a single charge to avoid workflow interruptions during long verification exercises.
- Software integration: The reader’s application must integrate with your asset management platform, ideally with real-time sync rather than end-of-day batch upload.
Best Practices for Mobile RFID Auditing
- Train audit staff on sweeping technique — RFID tags are omnidirectional, but scan angles and distance affect reliability. Consistent sweeping patterns reduce missed reads.
- Conduct a test scan on a known sample before starting the full audit to confirm the reader, tag stock, and software integration are all functioning correctly.
- Define zone boundaries clearly before scanning — overlapping zones without clear boundaries lead to assets being confirmed in the wrong location.
- Use mobile RFID readers in combination with fixed readers at high-traffic entry points to maximize coverage and minimize the area that requires manual mobile scanning.
How AssetCues Works with Mobile RFID Readers
AssetCues supports mobile RFID scanning through its verification module, enabling audit teams to load asset lists onto mobile readers, capture scan data in the field, and synchronize results directly with the asset register. Missing assets, unregistered finds, and condition exceptions are all logged against the audit record for investigation and resolution.
