Introduction
The GPS asset tracking vs geotagging question is really one question: where does the position come from, and when was it true? A geo-tag captures a position once, at an observation; an installed GPS tracker transmits positions at intervals, while powered and covered. Everything else about outdoor location follows from that difference.
For teams comparing all available options, asset tracking technologies covers barcode, RFID, BLE, RTLS, and GPS side by side based on tracking needs, update intervals, infrastructure, and real-world deployment requirements.
In this guide, you will learn:
- What distinguishes GPS tracking from phone-based geotagging, including differences in position sources, timestamps, update intervals, and evidence.
- How coverage, power requirements, mounting conditions, and operating environments affect the reliability of GPS-based asset tracking.
- Why GPS tracking and asset identification serve different purposes, and how barcode, QR, or RFID records complement position data.
- How to evaluate GPS solutions, integration evidence, stale-data handling, and pilot results before implementing outdoor tracking.
GPS Tracker Versus Phone Geo-Tag Position Source and Update Timing
A phone geo-tag rides on an event: someone scans or photographs the asset, and the device’s position at that moment is stamped onto the observation. An installed tracker is its own device: it fixes position from satellites and transmits on a configured interval.
One gives you verified moments; the other gives you a feed. Each is one capture method within IoT asset tracking, not a rival system.
Define the Operating Environment: Coverage, Power and Mounting
Three environment questions decide whether a tracker can even do its job.
- Coverage: A GPS tracker needs a clear view of the sky to find its position, so roofs, walls and tall structures can block or distort the signal; a yard works, a warehouse aisle does not.
- Power: Every tracker needs its own power source, either a battery that must be recharged or replaced, or a wired connection to the asset’s own power, so this has to be planned for each asset.
- Mounting: The tracker must sit where it can see the sky and survive real working conditions such as vibration, dust and water, so judge it on the actual asset, not the brochure asset. If any one of these three fails, the tracker will stop reporting or show a wrong position, so check all three for each asset before choosing a device.
The Worked Location-Evidence Comparison
Put the two records side by side and the difference stops being abstract. The table below sets out the structure; your own verified scan and tracker records complete it.
Scan photo versus installed tracker
Field | Geo-tagged scan observation | Installed tracker record |
|---|---|---|
| Position source | The scanning device’s location at the event | The tracker’s own satellite fix |
| Timestamp | The moment of the scan- a verified event | The last successful transmission |
| Update history | One entry per observation; gaps are normal and honest | A feed at the configured interval until it is not |
| What it proves | The asset was here, then, in this custody event | The tracker was there at the last recent report, if the feed is healthy |
Stale update and loss of coverage
The tracker’s failure mode is silence that looks like certainty: the map still shows the last fix after the battery died, the signal was blocked or the data plan lapsed.
Treat a stale update as an exception with an owner and display the timestamp next to every position, always. The scan observation cannot go stale invisibly; its date is its honesty.
Evaluate GPS Solution Scope: Device, Connectivity, Software and Support
When outdoor positioning justifies a tracker, evaluate the full dependency chain: supported devices, site connectivity, software for managing location data and exceptions, and responsibility for each layer. GPS asset tracking is therefore a scoped solution decision rather than simply a device purchase.
Check one layer at a time, because a weakness in any layer weakens the whole feed.
- Device: Match the tracker to the asset. Powered equipment and vehicles can use a wired tracker; trailers, containers and unpowered equipment usually need battery units, so ask how long the battery lasts at your chosen reporting interval. Check that the housing suits the environment (dust, water, vibration) and that installation will not affect the asset’s operation or warranty.
- Connectivity: A tracker only helps if its reports reach you. Cellular, satellite and low-power wide-area networks differ in coverage, cost and power draw, so check coverage at your actual sites, not a provider’s general map. Confirm who owns and renews the data plan, since a lapsed plan is a silent-failure cause.
- Software: A map alone is not enough. Ask whether the software raises exceptions (no report within a set period, low battery, asset leaving an expected area) and sends each to a named owner. Ask whether the tracker is linked to the asset register record, so position always sits against the right asset ID.
- Support: Find out who fixes what. A dead device, a connectivity fault and a software issue may each belong to a different party, so know who to call before something breaks.
Combine GPS With RFID or Barcode Identity
A tracker locates; it does not identify. Identity stays with the asset’s barcode, QR, or RFID tag bound to the register, while position comes from the tracker or the scan event. There is no everyday combined RFID-GPS chip doing both jobs in one label; designs that assume one conflate two different physics and two different costs.
The two layers work together like this:
- Identity layer: A barcode, QR or RFID tag ties the physical asset to its register record. Barcode and QR are low-cost but need a clear line of sight; RFID can be read without it, which helps when many assets must be checked quickly.
- Position layer: The tracker supplies repeated positions for assets that justify it. A geo-tagged scan supplies a verified position at each audit or custody event.
The link between them: The tracker’s ID must be mapped to the asset’s register ID. If a tracker is moved or replaced and the mapping is not updated, the map will show the right dot against the wrong asset.
A generator on a construction site might carry a QR plate for identity and an installed tracker for position, with a periodic scan confirming it is where the tracker says. Most other assets on the site may need only the tag and a scan, so matching the method to the asset keeps cost sensible.
Request Integration Evidence and Pilot Results
Before depending on any outdoor feed, ask for evidence: which integrations are actually supported and pilot results from a comparable site, with stale-data behaviour demonstrated. A tracker improves your chances of locating a missing asset, but no tracker or vendor can guarantee recovery.
Use this short checklist when asking for evidence:
- Integrations: Which systems are supported, which way data flows, how often it refreshes and who confirmed it. A named confirmation carries more weight than a general statement.
- Pilot scope: Number of assets, how long it ran and the conditions (open yard, partial cover, mixed terrain).
- Stale-data behaviour: What a user sees when a tracker goes silent, and how quickly the system flags it.
- Pilot results: Missed or late reports, battery reporting accuracy, false alerts and how exceptions were handled.
- Success criteria: Agree what a good pilot looks like before it starts, so results are measured against your needs.
- Data ownership and access: Who owns the position history, whether you can export it, who can view it, and what happens to it if you leave.
Discuss outdoor visibility requirements bring your asset list and site map, and the honest answer starts with which of the two evidence types each asset needs.

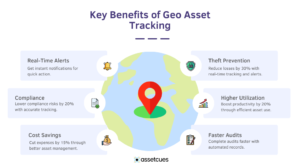

Benefits of Geo-Tagging for Asset Management
Once you know which assets need which type of evidence, geo-tagging is the method that covers most of them. A geo-tagged scan gives dated, verifiable location evidence at every scan or audit, which reduces the routine problems of missing equipment and weak audit records across sites.
- Higher Utilization: Knowing where each asset was last scanned cuts the time spent searching for equipment. It also shows which items sit idle at one site, so they can be redeployed instead of a new one being bought.
- Simplified Audits: Each scan stamps the asset’s position and time onto its register record, so the register stays current and auditors can confirm where something was and when. Staff scan a tag or QR code on-site (for example, with the AssetCues mobile app) instead of chasing paper records, which makes audits faster and easier to defend.
- Prevent Loss and Theft: A scan gives the last verified location and date. When an asset is missing at the next audit, you can tell whether it was moved or is genuinely unaccounted for, and you know where to start looking. Geo-tagging does not raise live alerts or guarantee recovery.
- Cost Savings: Fewer search hours, fewer duplicate purchases, and shorter manual checks reduce running costs. Most assets need only a tag and a scan, so trackers can be kept for the few outdoor assets that justify them.
Geo-tagging does not show where an asset is between scans. For high-value outdoor assets that need continuous updates, pair it with an installed tracker.
Key Takeaways
- Distinguish GPS asset tracking from geotagging by examining position source and update timing; geotagging records verified observations, while trackers provide repeated updates that depend on connectivity and power.
- Evaluate coverage, battery requirements, mounting conditions, and environmental exposure before deployment, and pilot at actual sites to identify positioning, connectivity, and durability limitations.
- Combine barcode, QR, or RFID identification with GPS position data rather than treating tracking as asset identity; this keeps location evidence linked to the correct register record.
- Require integration evidence, pilot results, stale-data handling, data ownership, and exception workflows before implementation; moreover, display timestamps clearly so outdated positions are never mistaken for current locations.
Conclusion
Understanding GPS asset tracking vs geotagging starts with knowing where the position comes from and when it was recorded. While geotagging captures an asset’s location during a specific scan or photo, gps asset tracking provides repeated position updates through a dedicated tracker. Therefore, choosing between the two depends on the asset, coverage, power, mounting, and the level of location visibility required.
FAQs
Q1. What is the difference between GPS tracking and geotagging?
Ans: GPS tracking sends an asset’s position repeatedly through a device fitted to it. Geotagging records the location once, when someone scans or photographs the asset.
Q2. Is geotagging real-time tracking?
Ans: No. A geotag only shows where the asset was at the moment of the scan. It tells you nothing about where the asset is now.
Q3. How accurate is GPS asset tracking?
Ans: In open outdoor areas, it is usually accurate to within a few meters. Accuracy drops near tall buildings, under roofs or in covered areas.
Q4. Does a GPS tracker need internet or a SIM card?
Ans: Yes, in most cases. The tracker finds its position from satellites, but it needs a cellular or satellite connection to send that position to your software.
Q5. Can a business use GPS tracking and geotagging together?
Ans: Yes, and many do. Trackers cover high-value outdoor assets that need continuous updates, while geotagged scans verify the location of everything else during audits.
